Show Van 2025

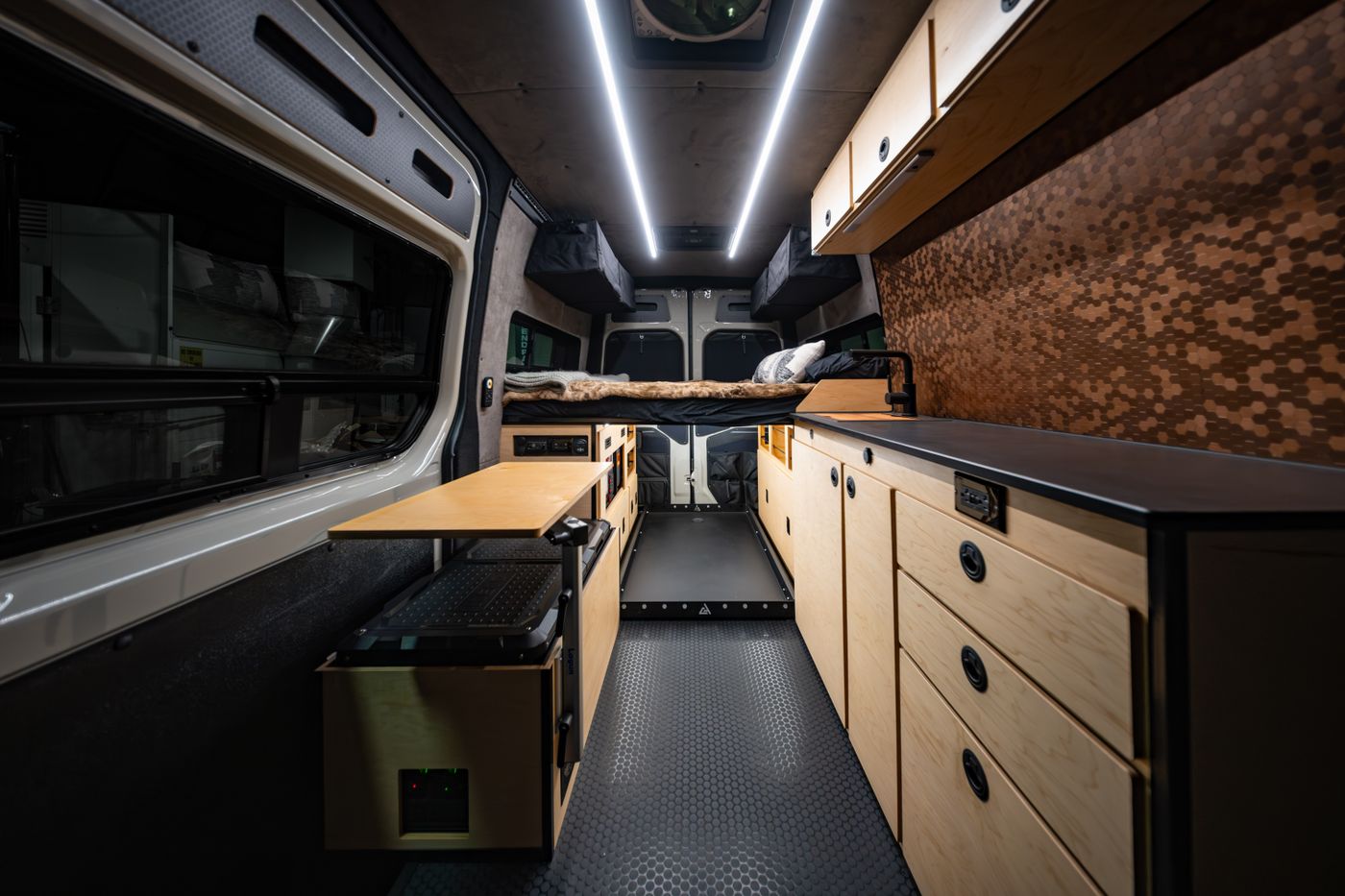

This 2024 Sprinter 144 AWD was converted for use as our Show Van for the 2025 Tradeshow season. Although this used a fairly common layout we have created before, some additional details were added like a Richlite black counter top, copper hexagon back splash and Van Essential Rear Door Storage Bags.
Systems include 460ah of Lithium batteries, 50 amp vehicle connection keep the batteries charged, 3000 watt Kisae inverter/charger, Velit 2000R 12v DC Air Conditioner, Max Fan Deluxe, Espar Diesel Air Heater, 20 Gallon Fresh water storage, and 7 gallons of Grey water storage. A custom slide out cargo tray and was fitted in the garage area for easy storage access.
On the exterior the build received Craft Autoworks Rock Slider Side Steps, an FVCO Front Nudge Bar with Auxbeam Lights and FVCO Rear Step. For Rear Door Cargo Carriers we use the Vanspeed Ladder Tire Carrier and Mule Carrier. Suspension was upgraded with the Van Compass 2.3 System and Wheels were Provided by Reika wrapped in Falken Wildpeak AT4W Tires.
COST: $95,000 + Tax and Van
- Baltic Birch walls and ceiling with Automotive Micro-fiber Upholstery
- 3M Thinsulate Insulation
- Custom CNC cut maple plywood cabinetry
- 5ft Kitchen with Richlite counter
- Portable Induction Cooktop
- Dometic Cassette Toilet
- Iceco DC Fridge Freezer
- Queen size bed with Side Capsules
- Exterior Shower
- Custom Color Temperature Adjustable LED Lighting
- Maxxair Deluxe Fan
- Velit 2000R 12v DC Air Conditioner
- Espar AS3-D2L Diesel Heater
- 460Ah Craft Autoworks Lithium Battery pack
- 3000 watt inverter/charger
- 50amp DC to DC with MPPT Charger
- 200 Watt Folding Solar Panels
- 20 Gal fresh & 7 Gal Grey water storage
- Cargo area with Slide-out Tray for garage storage
- FVCO Front Bumper w/ Lights and Rear Step
- Van Speed Ladder Tire Carrier and MULE Carrier
- Craft Autoworks Rock Slider Side Steps
- Van Compass 2.3 Falcon Adjustable Suspension
